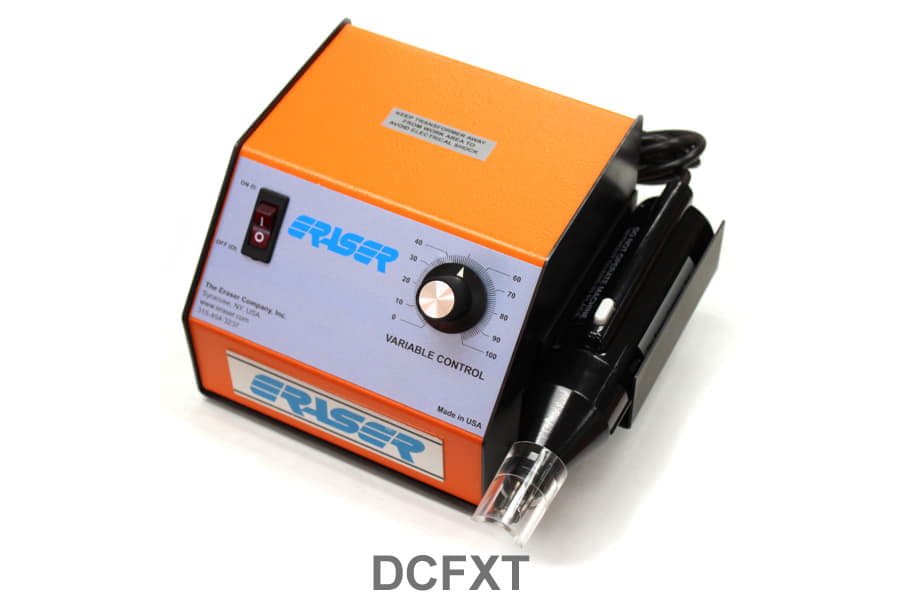

DCFXT Portable Wire Twister

Description / Details

Portable wire twister model DCFXT is used for neatly twisting together the ends of pre-stripped stranded wires.

Item Details

Model: DCFT
Part Number: AR4601

Use this part in place of the following:

AR4601 – DCFT

Series Information

TO BE UPDATED

The DCFX Series from The Eraser Company includes a wide range of wire strippers and twisters.

Models DCFX1, DCFX3, and DCFX5 use centrifugal force to cleanly remove the insulation from round magnet and enamel wire. Combined, these units can strip wire from 35-9 gauge. These models are also available in a drilled through version for infinite strip lengths.

The DCFXT uses a twisting head with three fingers to neatly twist together the ends of pre-stripped stranded wires.

The power unit allows for variable speed control, and a switch supports usage in both 115 and 220V.

An optional Bench Kit enables all models to be used as bench machines.

Specifications

Wire Size	Up to 12 AWG (3.31 mm²) or Equivalent
Twist Length	Up to 2-1/2" (64 mm) Material Dependent
Power	Multi-Voltage: 120/220/240 VAC at 50/60 Hz
Size	Handpiece: 7-3/8"L x 1-5/8"ø (187 mm x 41 mmø) Power Unit: 6"L x 5-3/4"W x 4-1/2"H (152 mm x 146 mm x 114 mm)
Weight	Handpiece: 1.00 lbs (0.45 kg) Power Unit: 5.50 lbs (2.50 kg)
